Features:high efficient transmission,low noise,               withstand oil and strain,without elasticity,               no extension,high precision,withstand abrasion,               working temperature range from -30℃ to 80℃.
This product is widely applied to security, glass ceramic, wood, metal plastic,printing, packaging, textile, food, tobacco, instrumentation, communication cable, electrical  appliance,car,sports and other industries of mechanical transmission.

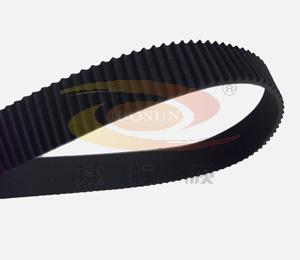

Arc Tooth Timing Belt-HTD2M
Pitch=2mm
Specification	Number of tooth	Section line length (mm)		Specification	Number of tooth	Section line length (mm)
2M-78	39	78		2M-276	138	276
2M-82	41	82		2M-280	140	280
2M-86	43	86		2M-282	141	282
2M-96	48	96		2M-286	143	286
2M-100	50	100		2M-288	144	288
2M-110	55	110		2M-292	146	292
2M-112	56	112		2M-294	147	294
2M-120	60	120		2M-300	150	300
2M-122	61	122		2M-310	155	310
2M-126	63	126		2M-312	156	312
2M-128	64	128		2M-320	160	320
2M-130	65	130		2M-322	161	322
2M-132	66	132		2M-324	162	324
2M-134	67	134		2M-328	164	328
2M-138	69	138		2M-336	168	336
2M-140	70	140		2M-338	169	338
2M-144	72	144		2M-340	170	340
2M-146	73	146		2M-342	171	342
2M-148	74	148		2M-344	172	344
2M-150	75	150		2M-346	173	346
2M-152	76	152		2M-348	174	348
2M-154	77	154		2M-350	175	350
2M-156	78	156		2M-354	177	354
2M-158	79	158		2M-356	178	356
2M-160	80	160		2M-364	182	364
2M-162	81	162		2M-366	183	366
2M-164	82	164		2M-370	185	370
2M-168	84	168		2M-372	186	372
2M-170	85	170		2M-380	190	380
2M-172	86	172		2M-384	192	384
2M-174	87	174		2M-388	194	388
2M-176	88	176		2M-392	196	392
2M-180	90	180		2M-394	197	394
2M-184	92	184		2M-400	200	400
2M-186	93	186		2M-410	205	410
2M-192	96	192		2M-420	210	420
2M-194	97	194		2M-428	214	428
2M-196	98	196		2M-448	224	448
2M-200	100	200		2M-460	230	460
2M-208	104	208		2M-468	234	468
2M-210	105	210		2M-470	235	470
2M-212	106	212		2M-476	238	476
2M-214	107	214		2M-478	239	478
2M-216	108	216		2M-490	245	490
2M-218	109	218		2M-492	246	492
2M-220	110	220		2M-494	247	494
2M-224	112	224		2M-500	250	500
2M-226	113	226		2M-506	253	506
2M-230	115	230		2M-516	258	516
2M-232	116	232		2M-530	265	530
2M-234	117	234		2M-558	279	558
2M-240	120	240		2M-600	300	600
2M-244	122	244		2M-634	317	634
2M-250	125	250		2M-640	320	640
2M-252	126	252		2M-660	330	660
2M-254	127	254		2M-690	345	690
2M-256	128	256		2M-702	351	702
2M-260	130	260		2M-810	405	810
2M-262	131	262		2M-930	465	930
2M-266	133	266		2M-1068	534	1068
2M-268	134	268		2M-1100	550	1100
2M-270	135	270		2M-1150	575	1150
2M-274	137	274
Specification and size are unfinished,welcome to contact us for more information!
