Features:high efficient transmission,low noise,               withstand oil and strain,without elasticity,               no extension, good crazing resistance,               working temperature range from -30℃ to 80℃.
This product is widely applied to security, glass ceramic, wood, metal plastic,printing, packaging, textile, food, tobacco, instrumentation, communication cable, electrical  appliance,car,sports and other industries of mechanical transmission.

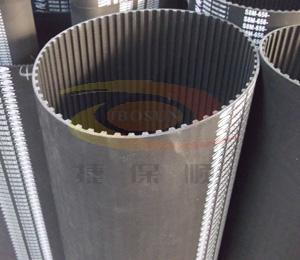

Trapezoidal Tooth Timing Belt-AT10
Pitch=10mm
Specification	Number of tooth	Section line length(mm)
AT10-500	50	500
AT10-560	56	560
AT10-580	58	580
AT10-660	66	660
AT10-730	73	730
AT10-840	84	840
AT10-920	92	920
AT10-960	96	960
AT10-1010	101	1010
AT10-1150	115	1150
AT10-1210	121	1210
AT10-1230	123	1230
AT10-1240	124	1240
AT10-1250	125	1250
AT10-1280	128	1280
AT10-1320	132	1320
AT10-1420	142	1420
AT10-1500	150	1500
AT10-1610	161	1610
AT10-1800	180	1800
AT10-1940	194	1940
AT10-2000	200	2000
AT10-2250	225	2250
AT10-2590	259	2590
AT10-2880	288	2880
AT10-3080	308	3080
AT10-3150	315	3150
AT10-3340	334	3340
AT10-4030	403	4030
Specification and size are unfinished,welcome to contact us for more information!
