Features:high efficient transmission,low noise,               withstand oil and strain,without elasticity,               no extension, good crazing resistance,               working temperature range from -30℃ to 80℃.
This product is widely applied to security, glass ceramic, wood, metal plastic,printing, packaging, textile, food, tobacco, instrumentation, communication cable, electrical  appliance,car,sports and other industries of mechanical transmission.

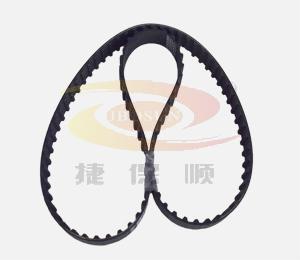

Trapezoidal Tooth Timing Belt-AT5
Pitch=5mm
Specification	Number of tooth	Section line length(mm)
AT5-225	45	225
AT5-255	51	255
AT5-280	56	280
AT5-300	60	300
AT5-305	61	305
AT5-340	68	340
AT5-375	65	375
AT5-390	78	390
AT5-420	84	420
AT5-545	109	545
AT5-455	91	455
AT5-500	100	500
AT5-545	109	545
AT5-600	120	600
AT5-610	122	610
AT5-630	126	630
AT5-660	132	660
AT5-690	138	690
AT5-710	142	710
AT5-750	150	750
AT5-780	156	780
AT5-825	165	825
AT5-975	195	975
AT5-1050	210	1050
AT5-1125	225	1125
Specification and size are unfinished,welcome to contact us for more information!
