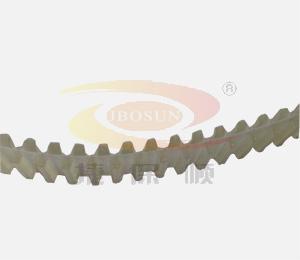

Double-sided Timing Belt
Details:
1)The pitch and tooth shape of double-sided timing belts are equal to those of one-sided timing belts
2)Types of the double-sided timing belts can be divided into two standard types according to the arrange of toothed wheel:
DA double-sided timing belts,which toothed wheels of both sides are arranged asymmetrically.
DB double-sided timing belts,which toothed wheels of both sides are in staggered.
PU Double-sided Timing Belts |
Specification |
Pitch(mm) |
Section line length(mm) |
DL |
9.525 |
571.5~1495.43 |
DH |
12.7 |
838.2~2032 |
DT5 |
5 |
260~1520 |
DT10 |
10 |
260~1960 |
Specification and size are unfinished,welcome to contact us for more information! |
