Features:high efficient transmission,low noise,               withstand oil and strain,without elasticity,               no extension, good crazing resistance,               working temperature range from -30℃ to 80℃.
This product is widely applied to security, glass ceramic, wood, metal plastic,printing, packaging, textile, food, tobacco, instrumentation, communication cable, electrical appliance,car,sports and other industries of mechanical transmission.

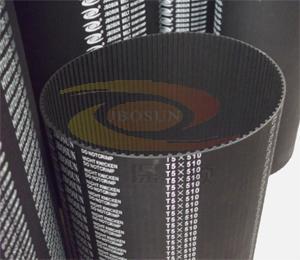

Trapezoidal Tooth Timing Belt-T5
Pitch=5mm
Specification	Number of tooth	Section line length (mm)		Specification	Number of tooth	Section line length (mm)
T5-90	18	90		T5-610	122	610
T5-110	22	110		T5-630	126	630
T5-150	30	150		T5-640	128	640
T5-185	37	185		T5-650	130	650
T5-190	38	190		T5-660	132	660
T5-200	40	200		T5-690	138	690
T5-210	42	210		T5-710	142	710
T5-215	43	215		T5-720	144	720
T5-220	44	220		T5-725	145	725
T5-240	48	240		T5-740	148	740
T5-245	49	245		T5-750	150	750
T5-250	50	250		T5-780	156	780
T5-255	51	255		T5-810	162	810
T5-260	52	260		T5-815	163	815
T5-270	54	270		T5-840	168	840
T5-275	55	275		T5-860	172	860
T5-280	58	280		T5-900	180	900
T5-295	59	295		T5-990	198	990
T5-300	60	300		T5-1045	209	1045
T5-325	65	325		T5-1075	215	1075
T5-330	66	330		T5-1100	220	1100
T5-355	71	355		T5-1150	230	1150
T5-360	72	360		T5-1215	243	1215
T5-365	73	365		T5-1270	254	1270
T5-390	78	390		T5-1380	276	1380
T5-395	79	395		T5-1430	286	1430
T5-400	80	400		T5-1600	320	1600
T5-410	82	410		T5-1800	360	1800
T5-420	84	420		T5-2200	440	2200
T5-425	85	425		T5-2220	444	2220
T5-450	90	450		T5-2280	456	2280
T5-455	91	455		T5-2400	480	2400
T5-475	95	475		T5-2800	560	2800
T5-500	100	500		T5-3100	620	3100
T5-510	102	510		T5-3300	660	3300
T5-525	105	525		T5-3500	700	3500
T5-530	106	530		T5-3700	740	3700
T5-545	109	545		T5-4000	800	4000
T5-550	110	550		T5-4200	840	4200
T5-560	112	560		T5-4600	920	4600
T5-575	115	575		T5-4800	960	4800
T5-585	117	585		T5-5000	1000	5000
T5-600	120	600		T5-5600	1120	5600
Specification and size are unfinished,welcome to contact us for more information!
