Features:high efficient transmission,low noise,               withstand oil and strain,without elasticity,               no extension, good crazing resistance,               working temperature range from -30℃ to 80℃.
This product is widely applied to security, glass ceramic, wood, metal plastic,printing, packaging, textile, food, tobacco, instrumentation, communication cable, electrical appliance,car,sports and other industries of mechanical transmission.

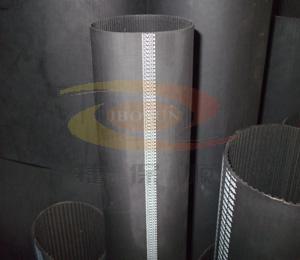

Trapezoidal Tooth Timing Belt-T2.5
Pitch=2.5mm
Specification	Number of tooth	Section line length (mm)		Specification	Number of tooth	Section line length (mm)
T2.5-100	40	100		T2.5-580	232	580
T2.5-120	48	120		T2.5-650	260	650
T2.5-125	50	125		T2.5-800	320	800
T2.5-135	54	135		T2.5-950	380	950
T2.5-145	58	145		T2.5-1000	400	1000
T2.5-150	60	150		T2.5-1100	440	1100
T2.5-157	63	157		T2.5-1250	500	1250
T2.5-157.5	63	157.5		T2.5-1325	530	1325
T2.5-158	63	158		T2.5-1400	560	1400
T2.5-160	64	160		T2.5-1475	590	1475
T2.5-162.5	65	162.5		T2.5-1500	600	1500
T2.5-172.5	69	172.5		T2.5-1600	640	1600
T2.5-177.5	71	178		T2.5-1800	720	1800
T2.5-178	71	177.5		T2.5-2000	800	2000
T2.5-185	74	185		T2.5-2100	840	2100
T2.5-195	78	195		T2.5-2200	880	2200
T2.5-225	90	225		T2.5-2500	1000	2500
T2.5-230	92	230		T2.5-2825	1130	2825
T2.5-245	98	245		T2.5-3000	1200	3000
T2.5-265	106	265		T2.5-3250	1300	3250
T2.5-290	116	290		T2.5-3550	1420	3550
T2.5-330	132	330		T2.5-3900	1560	3900
T2.5-350	140	350		T2.5-4250	1700	4250
T2.5-380	152	380		T2.5-4500	1800	4500
T2.5-400	160	400		T2.5-4750	1900	4750
T2.5-425	170	425		T2.5-5000	2000	5000
T2.5-550	220	550		T2.5-5600	2240	5600
Specification and size are unfinished,welcome to contact us for more information!
