Mechanism Property:
Tensile strength ≥380N/mm;
Refference strength 300;
Elongation 4.0;
Hardness 75±5;
Fabric bonding strength ≥10N/mm;
Zinc wire bonding strength ≥800N/mm;
Tooth cutting strength ≥75N/mm.
|
|
Features:high efficient transmission,low noise,
withstand oil and strain,without elasticity,
no extension, appropriate teeth,
working temperature range from -30 to 80档 |
This product is widely applied to security, glass ceramic, wood, metal plastic, printing, packaging, textile, food, tobacco, instrumentation, communication cable,electrical appliance,car,sports and other industries of mechanical transmission. |

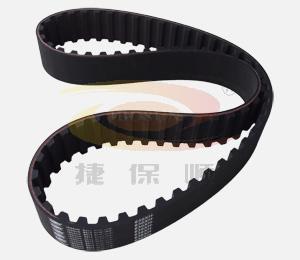

Trapezoidal Tooth Timing Belt-XH |
Pitch=22.225mm |
Specification |
Number of tooth |
Section line length
(mm) |
|
Specification |
Number of tooth |
Section line length
(mm) |
333XH |
38 |
844.55 |
|
700XH |
80 |
1778 |
341XH |
39 |
866.78 |
709XH |
81 |
1800.23 |
350XH |
40 |
889 |
726XH |
83 |
1844.68 |
359XH |
41 |
911.23 |
726.5XH |
83 |
1845.31 |
368XH |
42 |
933.45 |
735XH |
84 |
1866.9 |
385XH |
44 |
977.9 |
752.5XH |
86 |
1911.35 |
394XH |
45 |
1000.13 |
753XH |
86 |
1911.35 |
403XH |
46 |
1022.35 |
761XH |
87 |
1933.58 |
411XH |
47 |
1044.58 |
770XH |
88 |
1955.8 |
429XH |
49 |
1089.03 |
796XH |
91 |
2022.48 |
446XH |
51 |
1133.48 |
822XH |
94 |
2089.15 |
464XH |
53 |
1177.92 |
840XH |
96 |
2133.6 |
481XH |
55 |
1222.38 |
866XH |
99 |
2200.27 |
499XH |
57 |
1266.83 |
901XH |
103 |
2288.54 |
507XH |
58 |
1289.05 |
927XH |
106 |
2354.58 |
543XH |
62 |
1377.95 |
980XH |
112 |
2489.2 |
560XH |
64 |
1422.4 |
1000XH |
114 |
2533.65 |
569XH |
65 |
1444.63 |
1120XH |
128 |
2844.8 |
570XH |
65 |
1447.8 |
1260XH |
144 |
3200.4 |
578XH |
66 |
1466.85 |
1330XH |
152 |
3378.2 |
595XH |
68 |
1511.3 |
1400XH |
160 |
3556 |
604XH |
69 |
1533.53 |
1496XH |
171 |
3800.47 |
613XH |
70 |
1555.75 |
1540XH |
176 |
3911.6 |
621XH |
71 |
1577.98 |
1619XH |
185 |
4111.63 |
630XH |
72 |
1600.2 |
1750XH |
200 |
4445 |
648XH |
74 |
1644.65 |
1838XH |
210 |
4667.25 |
656XH |
75 |
1666.88 |
1925XH |
220 |
4889.5 |
665XH |
76 |
1689.1 |
2030XH |
232 |
5156.2 |
683XH |
78 |
1733.55 |
2100XH |
240 |
5334 |
691XH |
79 |
1755.78 |
2196XH |
251 |
5578.48 |
Specification and size are unfinished,welcome to contact us for more information! |
