Mechanism Property: Stable dimension, low preliminary tension , low noise High resistance to wear, free from maintain Highest linear speed can be 80m/s Chemical Properties: Anti-aging, waterproof solution, UVA resisitence,ozone resisitence Working temperature: -30℃～+80℃, can withstand 110 degrees within short time Resisit most oil & grease This type of product is commonly used in the transmission of control industry such as machine tool,textile and print,electrical cable, instrument,oil chemistry,tobacco,communicative equipment.

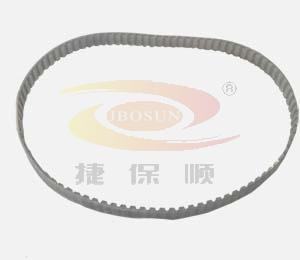

Trapezoidal Tooth Timing Belt -AT10
Pitch=10.00mm
Specification	Number of tooth	Section line length (mm)		Specification	Number of tooth	Section line length (mm)
AT10-250	25	250.00		AT10-1250	125	1250.00
AT10-500	50	500.00		AT10-1260	126	1260.00
AT10-530	53	530.00		AT10-1280	128	1280.00
AT10-560	56	560.00		AT10-1300	130	1300.00
AT10-580	58	580.00		AT10-1320	132	1320.00
AT10-600	60	600.00		AT10-1350	135	1350.00
AT10-610	61	610.00		AT10-1360	136	1360.00
AT10-660	66	660.00		AT10-1390	139	1390.00
AT10-700	70	700.00		AT10-1400	140	1400.00
AT10-730	73	730.00		AT10-1420	142	1420.00
AT10-780	78	780.00		AT10-1450	145	1450.00
AT10-800	80	800.00		AT10-1480	148	1480.00
AT10-810	81	810.00		AT10-1500	150	1500.00
AT10-840	84	840.00		AT10-1530	153	1530.00
AT10-880	88	880.00		AT10-1600	160	1600.00
AT10-890	89	890.00		AT10-1630	163	1630.00
AT10-920	92	920.00		AT10-1700	170	1700.00
AT10-960	96	960.00		AT10-1710	171	1750.00
AT10-980	98	980.00		AT10-1720	172	1720.00
AT10-1000	100	1000.00		AT10-1750	175	1750.00
AT10-1010	101	1010.00		AT10-1800	180	1800.00
AT10-1050	105	1050.00		AT10-1850	175	1750.00
AT10-1080	108	1080.00		AT10-1860	186	1860.00
AT10-1100	110	1100.00		AT10-1880	175	1750.00
AT10-1150	115	1150.00		AT10-1940	194	1940.00
AT10-1200	120	1200.00		AT10-2090	209	2090.00
AT10-1210	121	1210.00		AT10-2350	238	2380.00
AT10-1230	123	1230.00
Specification and size are unfinished,welcome to contact us for more information!
