Mechanism Properties: Stable dimension, low preliminary tension , low noise High resistance to wear, free from maintain Highest linear speed can be 80m/s Chemical Properties: Anti-aging, waterproof solution, UVA resisitence,ozone resisitence Working temperature: -30℃～+80℃, can withstand 110 degrees within short time Resisit most oil & grease This type of product is commonly used in the transmission of control industry such as machine tool,textile and print,electrical cable, instrument,oil chemistry,tobacco,communicative equipment.

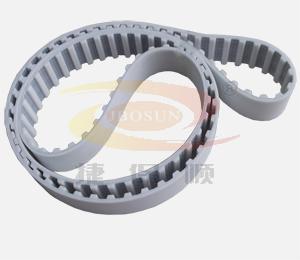

Trapezoidal Tooth Timing Belt -T20
Pitch=20.00mm
Specification	Number of tooth	Section line length (mm)
T20-1300	65	1300.00
T20-1460	73	1460.00
T20-1860	93	1860.00
T20-1880	94	1880.00
T20-2000	100	2000.00
T20-2360	118	2360.00
T20-2400	120	2400.00
T20-2500	125	2500.00
T20-2600	130	2600.00
Specification and size are unfinished,welcome to contact us for more information!
