Mechanism Properties: Stable dimension, low preliminary tension, low noise High resistance to wear, free from maintain Highest linear speed can be 80m/s Chemical Properties: Anti-aging, waterproof solution, UVA resisitence,ozone resisitence Working temperature: -30℃～+80℃, can withstand 110 degrees within short time Resisit most oil & grease This type of product is commonly used in the transmission of control industry such as machine tool,textile and print,electrical cable, instrument,oil chemistry,tobacco,communicative equipment.

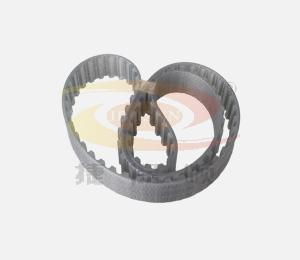

Trapezoidal Tooth Timing Belt -T10
Pitch=10.00mm
Specification	Number of tooth	Section line length (mm)		Specification	Number of tooth	Section line length (mm)
T10-250	25	250.00		T10-1150	115	1150.00
T10-260	26	260.00		T10-1160	116	1160.00
T10-320	32	320.00		T10-1200	120	1200.00
T10-340	34	340.00		T10-1210	121	1210.00
T10-370	37	370.00		T10-1240	124	1240.00
T10-390	39	390.00		T10-1250	125	1250.00
T10-400	40	400.00		T10-1260	126	1260.00
T10-410	41	410.00		T10-1280	128	1280.00
T10-420	42	420.00		T10-1300	130	1300.00
T10-440	44	440.00		T10-1320	132	1320.00
T10-450	45	450.00		T10-1350	135	1350.00
T10-460	46	460.00		T10-1360	136	1360.00
T10-480	48	480.00		T10-1390	139	1390.00
T10-490	49	490.00		T10-1400	140	1400.00
T10-500	50	500.00		T10-1410	141	1410.00
T10-510	51	510.00		T10-1420	142	1420.00
T10-530	53	530.00		T10-1440	144	1440.00
T10-540	54	540.00		T10-1450	145	1450.00
T10-550	55	550.00		T10-1460	146	1460.00
T10-560	56	560.00		T10-1490	149	1490.00
T10-600	60	600.00		T10-1500	150	1500.00
T10-610	61	610.00		T10-1520	152	1520.00
T10-630	63	630.00		T10-1530	153	1530.00
T10-650	65	650.00		T10-1560	156	1560.00
T10-660	66	660.00		T10-1580	158	1580.00
T10-680	68	680.00		T10-1600	160	1600.00
T10-690	69	690.00		T10-1610	161	1610.00
T10-700	70	700.00		T10-1630	163	1630.00
T10-720	72	720.00		T10-1640	164	1640.00
T10-730	73	730.00		T10-1700	170	1700.00
T10-750	75	750.00		T10-1750	175	1750.00
T10-760	76	760.00		T10-1760	176	1760.00
T10-780	78	780.00		T10-1780	178	1780.00
T10-800	80	800.00		T10-1800	180	1800.00
T10-810	81	810.00		T10-1850	185	1850.00
T10-840	84	840.00		T10-1860	186	1860.00
T10-850	85	850.00		T10-1880	188	1880.00
T10-880	88	880.00		T10-1960	196	1960.00
T10-890	89	890.00		T10-1980	198	1980.00
T10-900	90	900.00		T10-2000	200	2000.00
T10-910	91	910.00		T10-2020	202	2020.00
T10-920	92	920.00		T10-2100	210	2100.00
T10-940	94	940.00		T10-2120	212	2120.00
T10-950	95	950.00		T10-2160	216	2160.00
T10-960	96	960.00		T10-2170	217	2170.00
T10-970	97	970.00		T10-2200	220	2200.00
T10-980	98	980.00		T10-2250	225	2250.00
T10-1000	100	1000.00		T10-2370	237	2370.00
T10-1010	101	1010.00		T10-2500	250	2500.00
T10-1050	105	1050.00		T10-2800	280	2800.00
T10-1080	108	1080.00		T10-3040	304	3040.00
T10-1100	110	1100.00		T10-3300	330	3300.00
T10-1110	111	1110.00		T10-3520	352	3520.00
T10-1140	114	1140.00		T10-3610	361	3610.00
Specification and size are unfinished,welcome to contact us for more information!
