Mechanism Property: Stable dimension, low preliminary tension, low noise High resistance to wear, free from maintain Highest linear speed can be 80m/s Chemical Properties: Anti-aging, waterproof solution, UVA resisitence,ozone resisitence Working temperature: -30℃～+80℃, can withstand 110 degrees within short time Resisit most oil & grease This type of product is commonly used in the transmission of control industry such as machine tool,textile and print,electrical cable, instrument,oil chemistry,tobacco,communicative equipment.

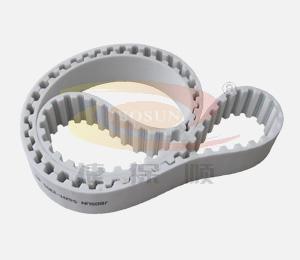

Trapezoidal Tooth Timing Belt -XH
Pitch=22.225mm
Specification	Number of tooth	Section line length(mm)
341XH	39	866.78
350XH	40	889
359XH	41	911.23
368XH	42	933.45
376XH	43	955.68
394XH	45	1000.13
508XH	58	1289.05
560XH	64	1422.40
630XH	72	1600.20
770XH	88	1955.80
840XH	96	2133.60
Specification and size are unfinished,welcome to contact us for more information!
