Mechanism Properties: Stable dimension, low preliminary tension, low noise High resistance to wear, free from maintain Highest linear speed can be 80m/s Chemical Properties: Anti-aging, waterproof solution, UVA resisitence,ozone resisitence Working temperature: -30℃～+80℃, can withstand 110 degrees within short time Resisit most oil & grease Acid, alkaline cautery resistance This type of product is commonly used in the transmission of control industry such as machine tool,textile and print, electrical cable,instrument,oil chemistry,tobacco, communicative equipment.

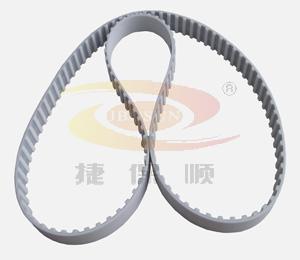

Trapezoidal Tooth Timing Belt -H
Pitch=12.70mm
Specification	Number of tooth	Section line length       (mm)		Specification	Number of tooth	Section line length (mm)
185H	37	469.9		515H	103	1308.10
200H	40	508.00		530H	106	1346.20
225H	45	647.70		540H	108	1371.60
230H	46	584.20		555H	111	1409.70
235H	47	596.90		560H	112	1422.40
240H	48	609.60		570H	114	1447.80
245H	49	622.30		585H	117	1485.90
250H	50	635.00		590H	118	1498.60
255H	51	647.70		595H	119	1511.30
270H	54	685.80		600H	120	1524.00
280H	56	711.20		620H	124	1547.80
285H	57	723.90		630H	126	1600.20
300H	60	762.00		645H	129	1638.30
315H	63	800.10		660H	132	1676.40
320H	64	812.80		690H	138	1752.60
330H	66	838.20		700H	140	1778.00
350H	70	889.00		720H	144	1828.80
360H	72	914.00		730H	146	1854.20
370H	74	939.80		735H	147	1866.90
375H	75	952.50		750H	150	1905.00
380H	76	965.20		770H	154	1955.80
390H	78	990.60		775H	155	1968.50
400H	80	1016.00		800H	160	2032.00
410H	82	1041.40		850H	170	2159.00
420H	84	1066.80		860H	172	2184.00
430H	86	1092.20		900H	180	2286.00
450H	90	1143.00		1000H	200	2540.00
465H	93	1181.10		1035H	207	2628.90
470H	94	1193.80		1100H	220	2794.00
480H	96	1219.20		1250H	250	3175.00
500H	100	1270.00		1400H	280	3556.00
510H	102	1295.40
Specification and size are unfinished,welcome to contact us for more information!
