Mechanism Properties: Stable dimension, low preliminary tension, low noise High resistance to wear, free from maintain Highest linear speed can be 80m/s Chemical Properties: Anti-aging, waterproof solution, UVA resisitence,ozone resisitence Working temperature: -30℃～+80℃, can withstand 110 degrees within short time Resisit most oil & grease Acid, alkaline cautery resistance This type of product is commonly used in the transmission of control industry such as machine tool ,textile and print, electrical cable,instrument,oil chemistry,tobacco, communicative equipment.

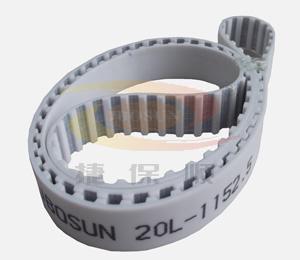

Trapezoidal Tooth Timing Belt -L
Pitch=9.525mm
Specification	Number of  tooth	Section line length (mm)		Specification	Number of  tooth	Section line length (mm)
113L	30	285.75		495L	132	1257.30
124L	33	314.33		510L	136	1295.40
150L	40	381.00		525L	140	1333.50
165L	44	419.10		540L	144	1371.60
172L	46	438.15		600L	160	1524.00
184L	49	466.73		720L	192	1828.80
188L	50	476.25		728L	194	1847.85
210L	56	533.40		833L	222	2114.55
218L	58	552.45		840L	224	2133.60
225L	60	571.50		900L	240	2286.00
229L	61	581.03		915L	244	2324.10
240L	64	609.60		949L	253	2409.825
247.5L	66	628.65		975L	260	2476.5
255L	68	647.70		990L	264	2514.6
263L	70	666.75		1024L	273	2600.325
270L	72	685.80		1170L	312	2971.8
278L	74	704.85		1249L	333	3171.825
285L	76	723.90		1271L	339	3228.975
293L	78	742.95		1320L	352	3352.8
300L	80	762.00		1373L	366	3486.15
315L	84	800.10		1421L	379	3609.975
323L	86	819.15		1451L	387	3686.175
334L	89	847.73		1500L	400	3810
338L	90	857.25		1639L	437	4162.425
341L	91	866.78		1808L	482	4591.05
345L	92	876.30		1973L	526	5010.15
353L	94	895.35		1999L	533	5076.825
356L	95	904.88		2138L	570	5429.25
368L	98	933.45		2243L	598	5695.95
375L	100	952.50		2250L	600	5715
390L	104	990.60		2501L	667	6353.175
420L	112	1066.80		2580L	688	6553.2
435L	46	435.00		2895L	772	7353.3
450L	120	1143.00		2996L	799	7610.475
480L	128	1219.20		3210L	856	8153.4
Specification and size are unfinished,welcome to contact us for more information!
